Emotron VFX

Variable frequency drives (VFD)

Emotron VFX

Ideal for dynamic applications

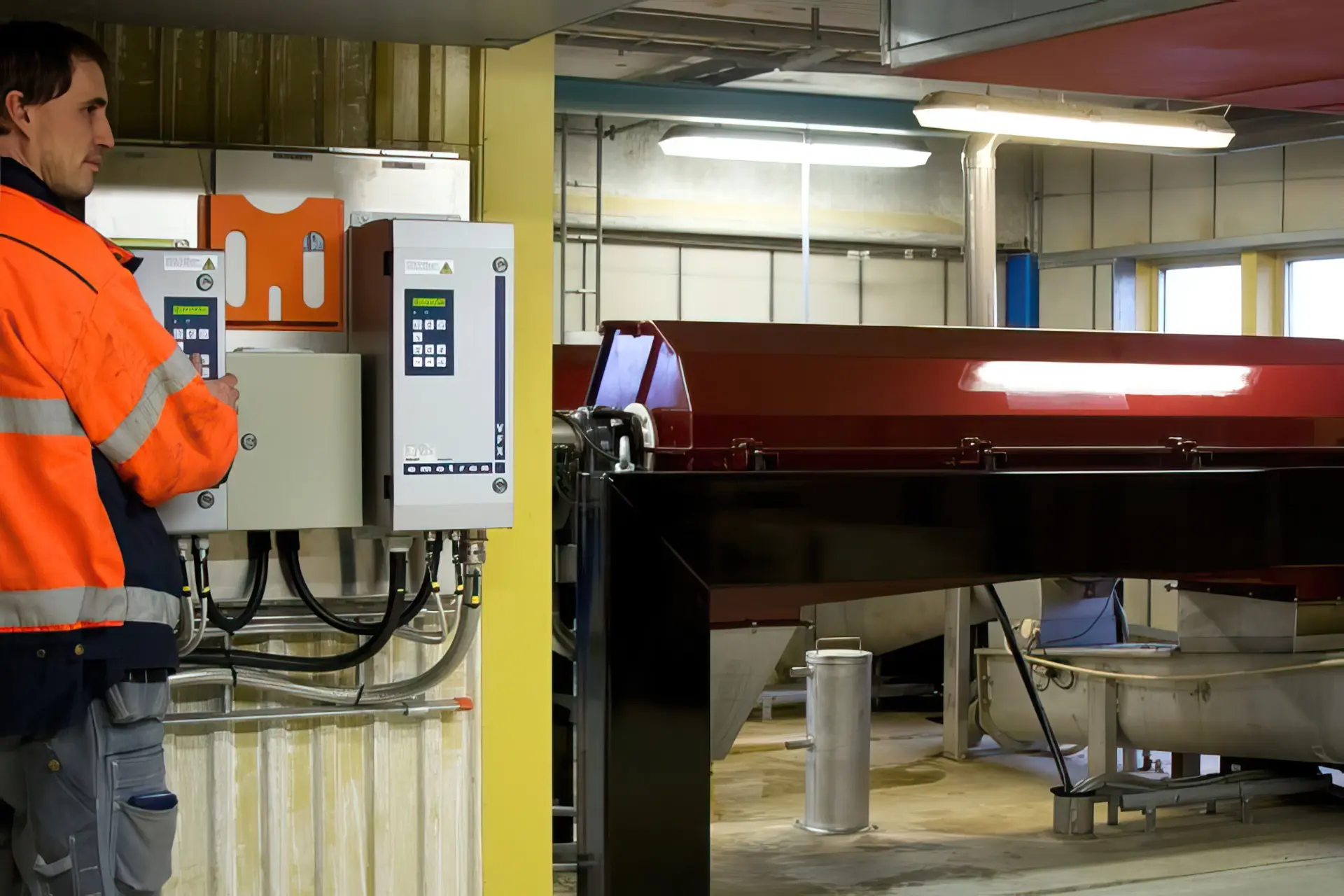

Emotron VFX variable frequency drive (VFD) optimises the operation of your cranes, crushers, mills and mixers. Your process is protected from damage and downtime and you benefit from reduced installation, energy and maintenance costs. Emotron VFX variable frequency drive is ideal for dynamic applications. Direct torque control, accurate speed control and efficient vector braking offer reliable control of, for example, cranes, crushers and centrifuges.

Available in both IP54 certified enclosure as well as IP20/21.

Smart new compact power modules reduce drive cabinet by 30%

CG Drives & Automation presents a new range of variable frequency drives (VFDs) for 160-4000kW, 230-690V within the Emotron brand. The range includes many new frame sizes for high power drives.

The new sizes are based on the new smart 365A Power Electronic Building Blocks (PEBBs). These power modules now have a significantly improved power density and their unique construction offers flexibility and redundancy. The result is up to 30% width reduction in the final drive cabinet.

Emotron VFX

About

EMOTRON VFX IP54 version
Rated power 0.75-4,000 kW
Supply voltage 230-690 V, 3-phase
Rated current 2.5-4,000 A
Protection class IP54
Approvals CE, UL/cUL (400V), DNV, EAC

EMOTRON VFX IP20/21 version
Rated power 11-1,600kW/400V, 1.5-55kW + 250-4,000kW/690V
Supply voltage 230-690V, 3-phase
Rated current 25-2920A/400V, 2-58A + 250-4,000A/690V
Protection class IP20 (optional 21)
Approvals CE, UL/cUL (400V), EAC

Efficient and protective starts and stops

Emotron VFX ensures efficient and protective starts. Reduced start currents result in smaller fuses, cables – and energy bills. Torque can be boosted to overcome initial peak loads. Integrated vector braking ensures quick and controlled stops, increasing not only productivity but safety as well.

Optimised operation and full control

The direct torque control reacts extremely quickly to eliminate disturbances due to abrupt load changes. A built-in load monitor and a unique Load Curve Protection function protect your process by immediately detecting any situation that could cause inefficiency or damage. Early warnings and safety stops for over- and underloads allow preventive action.

User-friendly and reliable operation

Operation parameters can be set in your own process units – m/sec, tons/hour, cycles/min etc. – making monitoring easier and more reliable. The removable control panel has a copy function for transferring settings to other Emotron VFX units. You can switch between local and remote control by the push of a button on the control panel. The built- in programmable logical functions, comparators and timers mean that, in many cases, external PLC or relays can be avoided.

Available in IP20/21 and IP54 versions

Emotron VFX is available in IP20/21and IP54 versions. The robust metal construction in IP54 version allows you to install your AC drive close to the application, which saves the cost of cabinets and long motor cables. The 300-3,000 A units (IP20 modules) are also available in compact CG-designed IP54. IP20/21 series 2.5-365 A are optimised for mounting in control cabinets (IP20) or on electrical room walls (IP21, 25-365A). Emotron VFX has a robust and compact design, with easy access to power terminals and an extended temperature range up to 55 °C.

Simplified maintenance

Should a process problem occur, a full status report will be generated. You can quickly identify the cause and take corrective measures. Maintenance is simplified thanks to a minimum of easy accessible mechanical parts and fold-out power modules.

Options add functionality

A number of options let you customise the functionality of the Emotron VFX  and fully utilise the product according to your needs. Up to four different options can be combined.

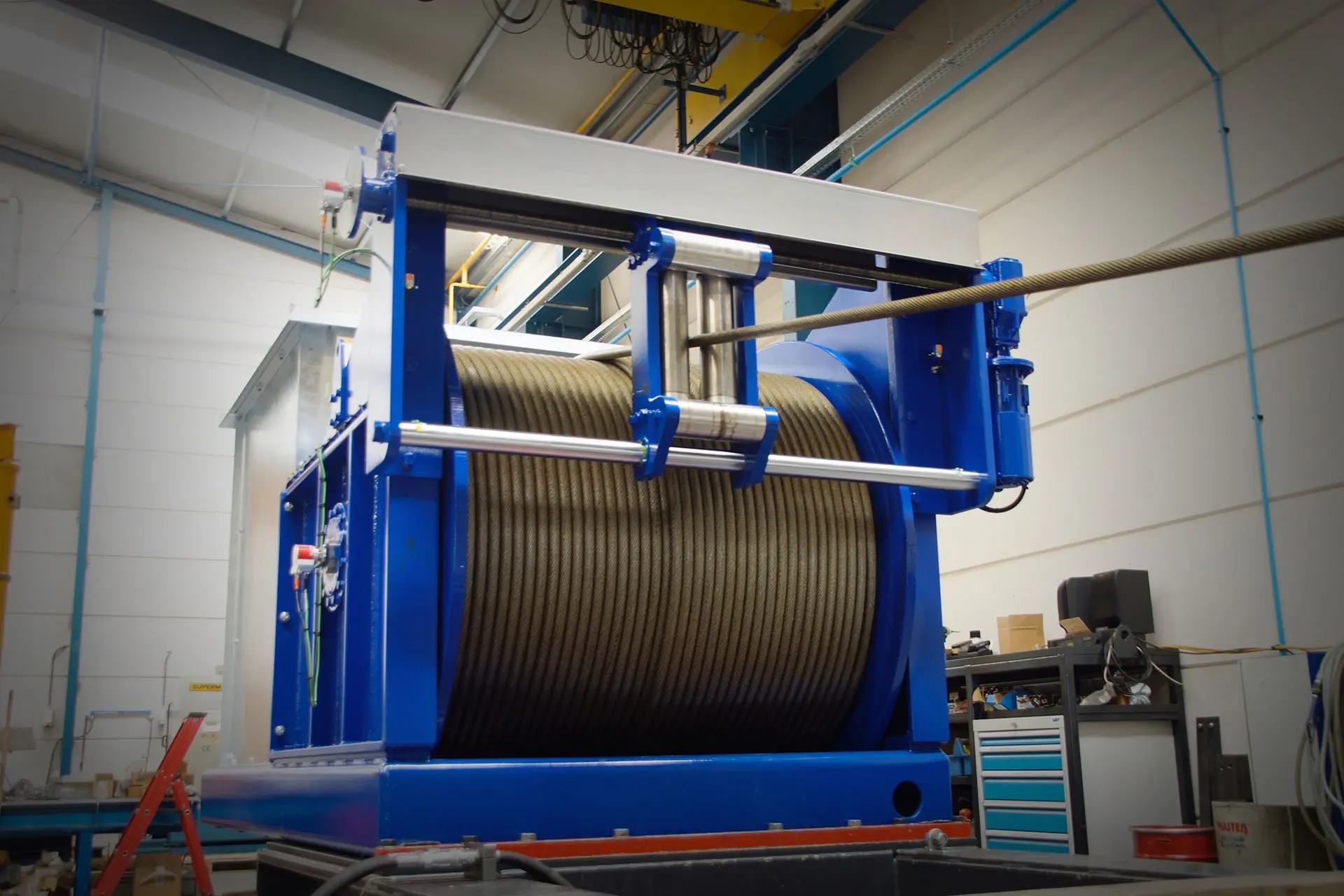

Crane control

A crane I/O expansion board offers efficient hoist and travel drive, and a safety system which activates the mechanical brakes should dangerous loads be detected. It also provides a load-dependant, field weakening function for hoist drives.

Shorter braking time

For short braking time or continuous braking, chopper is available as a factory-installed option. It is used in combination with brake resistors and is dimensioned according to the specific application demand.

Communication

Communication options include fieldbus communication via Profibus and DeviceNet, CANopen, Industrial Ethernet communication via Modbus/TCP, EtherCAT and Profinet, and serial communication via RS232 or RS485 using Modbus RTU protocol.

Motor protection

PTC and PT100 sensors can be connected to a monitor and protect motor temperature and give process feedback without using a transmitter.

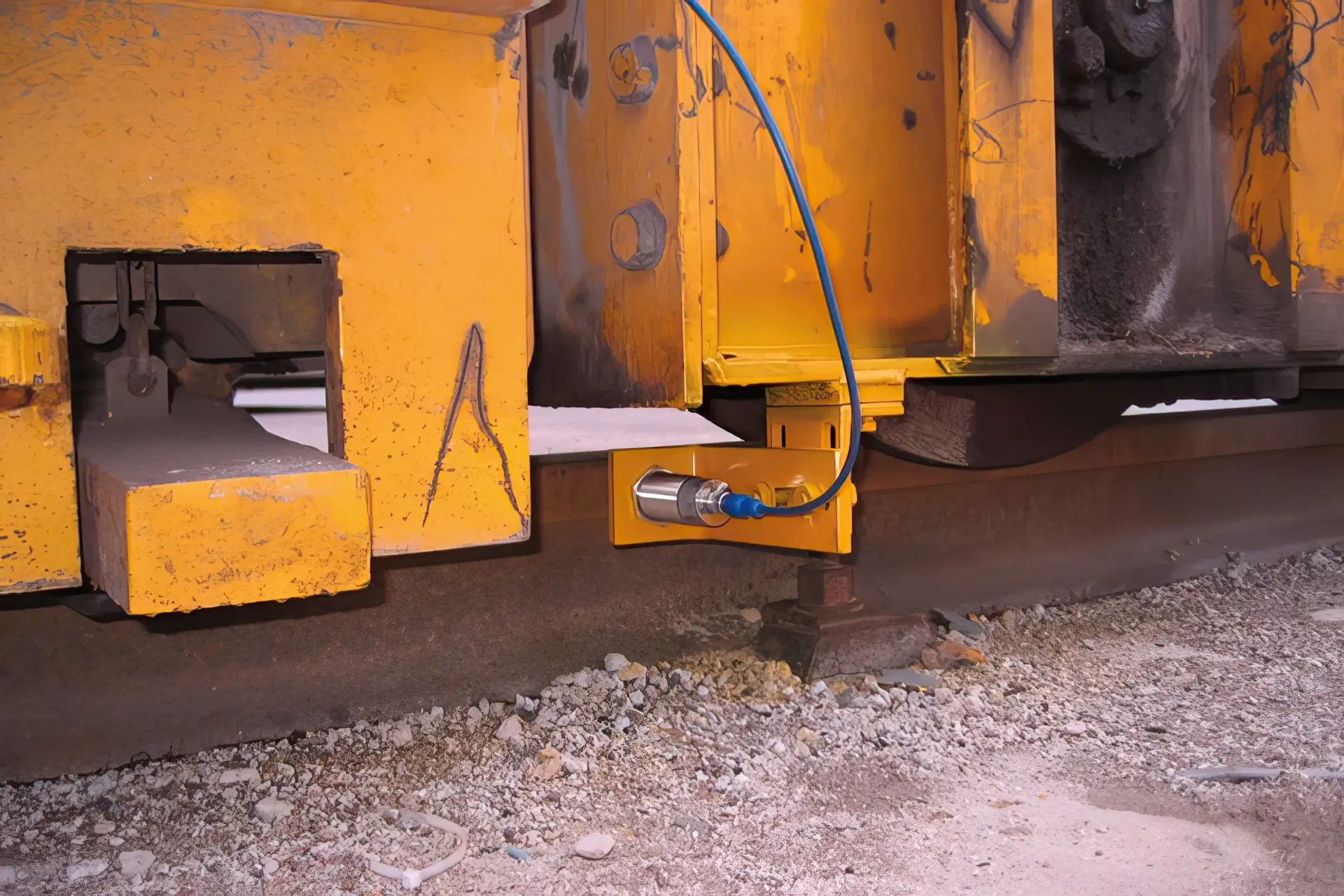

Encoder

A HTL or TTL pulse encoder can be connected for more accurate speed control or for increased safety through deviation control in crane applications.

Safe stop

This option board offers protection from unexpected start during mechanical maintenance, in accordance to the standards IEC 62061 SIL2 and ISO 13849. No contactor is required.

Liquid cooling

Units from 90 A can be provided with liquid cooling. This allows you to reduce operating and maintenance costs, and the cabinet can have a protection class higher than IP54.

EMC protection

A 1st environment category C2 EMC filter is available as a factory-mounted option.

Reduced harmonic distortions

A 12-pulse rectifier offers cost-efficient reduction of harmonic current distortions. It reduces power losses in equipment such as transformers and conductors, and eliminates the need to over-dimension these components.

IP21 Top cover

If units are wall mounted in electrical room, a top cover drip protection is available for IP 20 units 11-132 kW.
