In this German stone mine, the main conveyor belt for transportation was managed by a
different brand of softstarter in need of urgent replacement following a breakdown.
Already the next day, CG Drives & Automation had supplied the Emotron TSA 5 for easy DIY
installation. The sturdy softstarter with a high overload capacity boasts smart start and stop
function preventing unnecessary breakdowns and mechanical stress to your equipment.

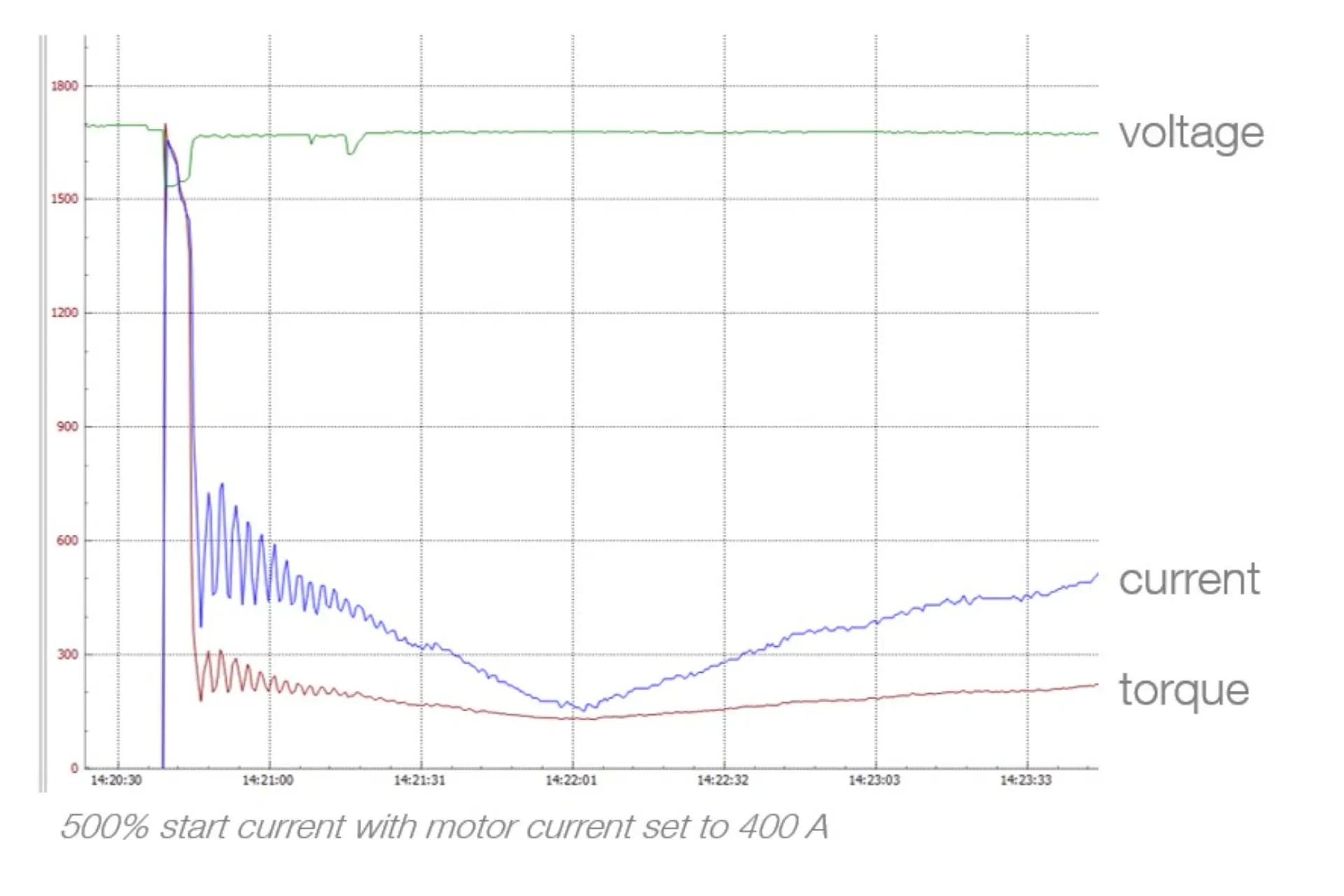

CG Emotron has implemented a softstarter that
ensures a steady performance for very heavy loads. The
TSA 5 installed handles higher load requirements with
ease – in this case with a 500% start current.

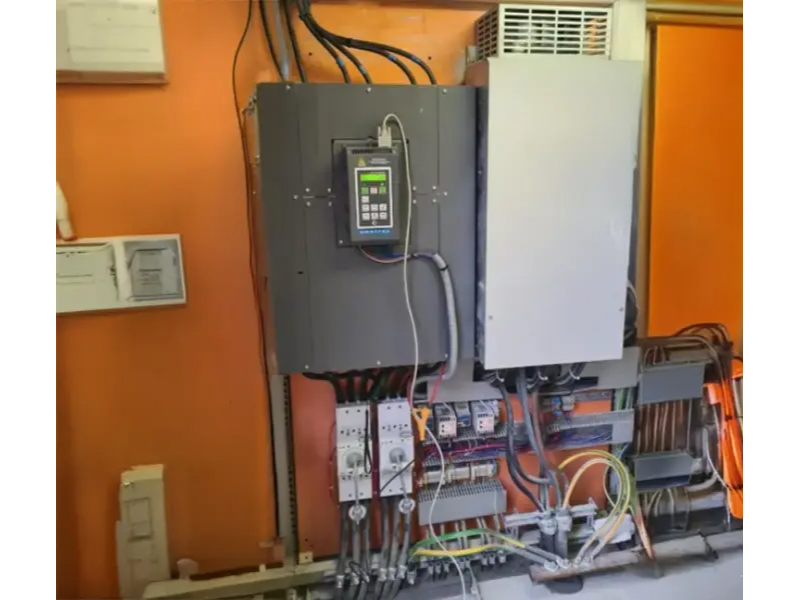

The Plug-and-play solution means that it was possible
for the mine to install the drive with minimal help from
CG Drives & Automation. The new solution was up and
running in less than two days.
Once in place, the TSA52-730 solution gives the mine
the possibility to monitor motor value at different levels
of power, current and shaft torque. The user-frendly
interface with the plain text display makes it easy to
run.
The Emotron TSA sotftstarter offers smart start and stop
functions preventing unecessary breakdowns and mechanical stress to your equipment.
To enable lowest possible energy consumption, Emotron TSA softstarters are equipped with an integrated by-pass contactor. Additionally, the built-in load monitor protects your machine and process against costly downtime, equipment damage and break-down.
To improve the ability of the softstarters to withstand
tough conditions the Emotron TSA units have circuit
boards with conformal coating according to IEC61721-
3-3, 3C3 as standard.
The full range of Emotron TSA is UL certified and DNV
marine type approved.
The Emotron TSA is enhanced with many features to
extend functionality and improve user experience.
The easy to use control panel carries a multilingual
display unit as standard. The real time clock together
with programmable logical blocks and timers allow
you to optimize your operation.
